StopExecution

StopExeution cancels the execution of the Map (or Custom Script) immediately after the current script, and by default, cancels any subsequent step(s) in that Action.

Any code lines in the script following this function will still be executed. Use Exit to stop the processing of the remainder of the script. Please review Exit for more information.

Using this procedure will cause the status of the Action to be set to cancelled (for Logs and notifications), and the Log will be YELLOW.

If the Action has one or more Action Steps, any subsequent step(s) will not execute. This is the default behaviour.

To allow execution of any subsequent Action Step, either see below, or use the CancelExecution procedure. Refer to CancelExecution for more information.

Declaration: Procedure StopExecution;

An example is as below.

procedure ScriptEvent(var Value:Variant);
var aInt :integer;
begin
  aInt := 2;
  if aInt <> 10 then
  begin
    LogInfo('This is the 1st line before STOP.');
    LogInfo('This is the 2nd line before STOP.');
    LogInfo('Next line will STOPEXECUTION. . . .');

    StopExecution;                        //subsequent lines will ALL execute;
    LogInfo('This is the 1st line after STOP.');
    LogInfo('This is the 2nd line after STOP.');
    LogInfo('Next line will EXIT . . . .');

    Exit;                                   //subsequent lines will NOT execute;
    //processing has now ceased and nothing further will execute
    LogInfo('This is the 1st line after EXIT.');
    LogInfo('This is the 2nd line after EXIT.');
  end;
end;

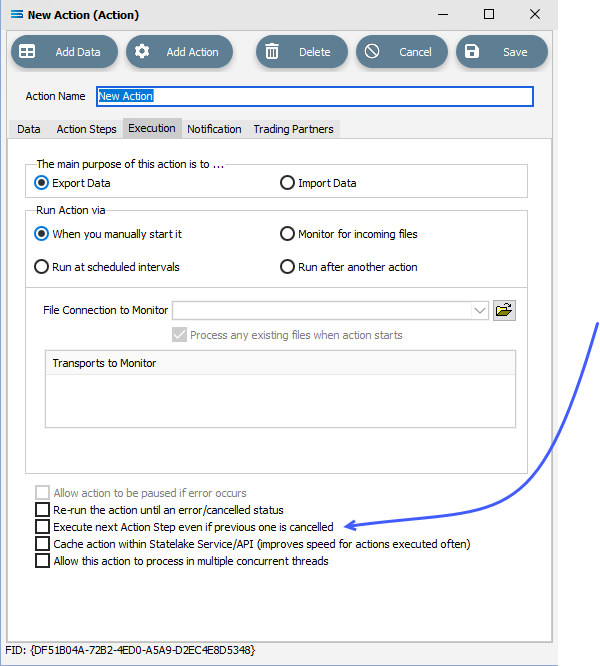

Execute Next Action Tick Box

The Action Steps to be executed by an Action can be controlled by setting, or clearing, the check-box Execute next Action Step even if previous one is cancelled (on the Action's Execution tab).

If this box is left unticked, then by default, any Action Steps which follow a StopExecution will not be executed, and the resulting Log will be YELLOW.

However, if this box has been ticked, then one of three (3) things will happen -

If the box is ticked but there are no following steps after the step that called the StopExecution, then the resulting Log will be YELLOW.
If the box is ticked, but the last step also includes a StopExecution, then the resulting Log will have a cancelled status, and will be YELLOW.
If this box has been set with a tick, and there are one or more following steps, then the Action will process those steps, and ignore the status of the step that called the StopExecution. Therefore, successfully processed steps which follow the step calling the StopExecution will cause the Log to have successfully completed status, and show to be GREEN.

Action.IgnoreCancel

The check-box corresponds to the Action.IgnoreCancel property, and this can be set or cleared via script.

As per the following example, when it is wanted that a multi-step Action show as cancelled in the Logs, then the property could be cleared part way through the Action (at run-time) so that StopExecution will have full effect.

if (SampleDataSource.RecordCount = 0) then
begin
  Action.IgnoreCancel := False;
  StopExecution;
end;
