Proxy Settings
The Proxy Settings Editor is used for specifying custom proxy information for modules that require connection through an HTTP Proxy Server.
The Proxy Server acts as a middleman. It is a dedicated computer or a software system running on a computer that acts as an intermediary or a gateway between an endpoint device, such as a computer, and another server from which a user or client is requesting a service.
The proxy server may exist in the same machine as a firewall server or it may be on a separate server, which forwards requests through the firewall.
Some networks do not have a Proxy Server and therefore these settings can be left blank.

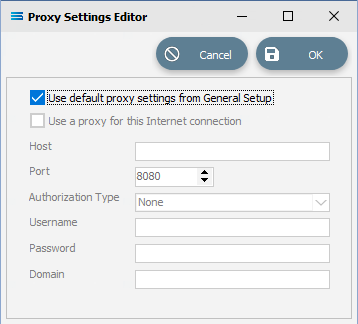

Selecting Proxy Settings on the General Tab, opens a fresh expandable Proxy Settings Editor window.
Fields
Field Name | Description |
|---|---|
Use default proxy settings from General Setup | Select to use the proxy settings configured within General Setup. Otherwise you can provide custom settings for this connection only. This is ticked as a default. If this is unticked, then all other fields in this window will be activated, as below. |
Use a proxy for this Internet connection | Select to enable the use of a Proxy Server for this connection. |
Host | The computer name or IP address of the Proxy Server. |
Port | The port that Proxy Server is listening on. By default most proxy servers listen on port 8080. |
Authorization Type | The authorization method to use when connecting to the remote HTTP server or service. |
Username | A user name to authenticate to the Proxy Server. This can be left blank. |
Password | A password for the above user. |
Domain | The domain that the user belongs to. This can be left blank. |
Buttons
Button Name | Description |
|---|---|
OK | Click OK once all details have been entered. |
Cancel | Click Cancel to cancel any changes or input made. |
