Add Action - Action Steps Tab

The Action has a reference to the list of steps to be performed as part of the work flow.

These steps could involve other modules like Reports and Maps, or could be simple internally defined steps such as Shell Execute commands, a custom script, or bespoke SQL statements.

It is these steps that define the tasks that the Action performs.

Any Action Steps that have been created for the Action will be listed under the Action Steps Tab.

To edit any existing items, single-click on the item.

To remove any unwanted Action Steps, double-click on the item and confirm when requested.

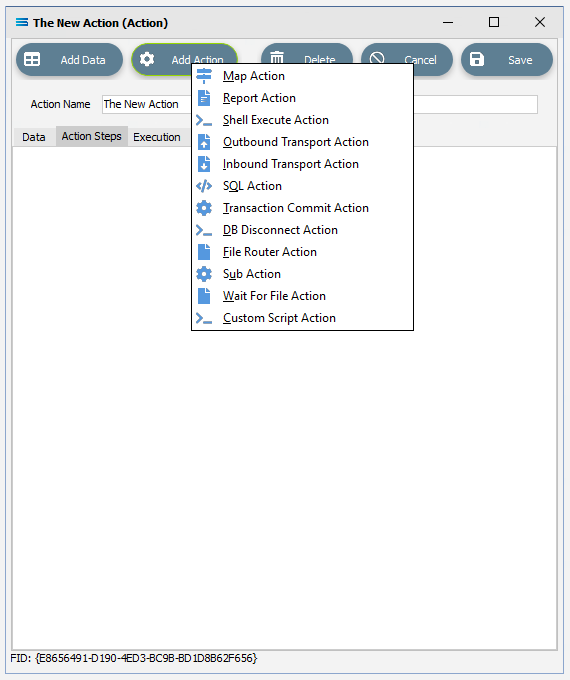

Each Action Step type has its own editor screen that displays in the bottom half of the Action Steps tab.

Steps

Field Name	Description
Map Action	A reference to a Map.
Report Action	A reference to a Report.
Shell Execute Action	Execute a command line using Windows Shell Execute.
Outbound Transport Action	Send an existing file via a Transport.
Inbound Transport Action	Receive n existing file via a Transport.
SQL Action	Execute a bespoke SQL statement.
Transaction Commit Action	Commit an open SQL Transaction.
DB Disconnect Action	Disconnect an open DB Connection.
File Router Action	Route incoming files to multiple locations based on custom script code.
Sub Action	Execute another Action as a step of this Action.
Wait For File Action	Wait for a file to arrive before continuing with processing.
Custom Script Action	Execute custom script code.
