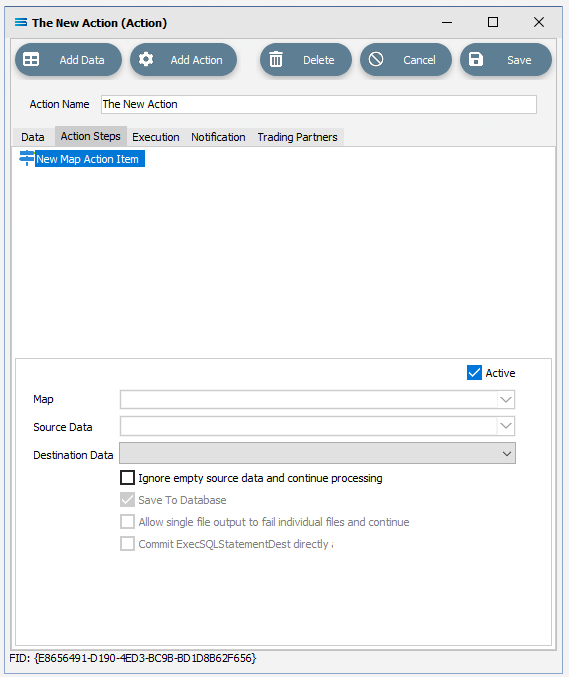

Selecting Map Action creates a New Map Action Item under the Action Steps Tab.

Click on the item to access the fields.

Fields

Field Name

Description

Active

Tick this box to make this step “active”. You can skip this step by deactivating it by un-ticking this box.

Map

Select the Map module to be executed by this step.

Source Data

Select the source Definition. There must be an item under the Data tab that this step can reference.

Destination Data

Select the destination Data Definition.

Ignore empty source data and continue processing

Select to continue processing of the Map, even if the source Data Definition is empty. This will generally involve the step resulting in a cancelled status.

Save To Database

Select to have the destination Data Definition save to its output at completion of the Map. If not selected, the data will remain in the memory of the destination Data Definition, and it should be used again later as a destination of another Map with this option selected, so that its data will be saved to the output at that time.

Allow single file output to fail individual files and continue

Commit ExecSQLStatementDest directly
