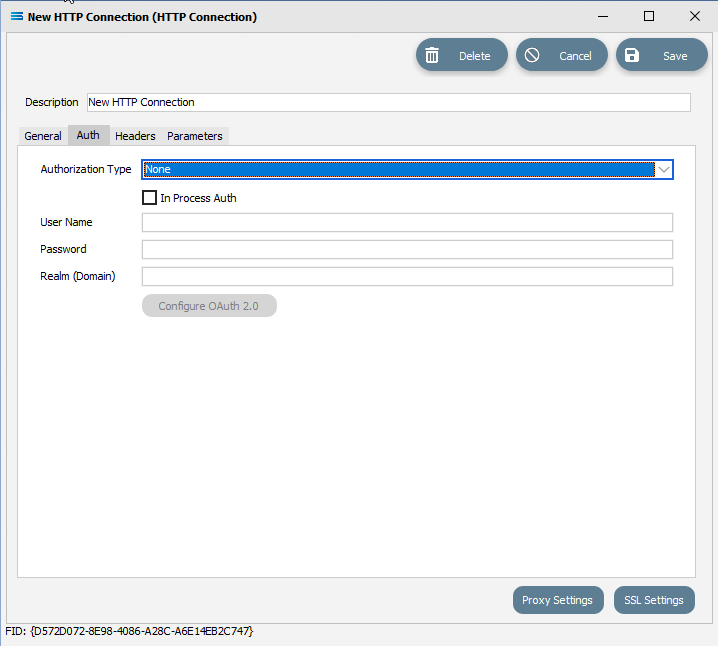

Auth Tab - HTTP Connections
Options to be completed.
Fields
Field Name | Description |
|---|---|
Authorization Type | The authorization method to use when connecting to the remote HTTP server or service. There are currently 4 options available. None - no HTTP authentication method, Often you would use an API Key to authenticate with services that have no HTTP authentication. Basic (clear text) - involves sending a username and password in clear text to authenticate the connection. NTLM (SSPI) - An old Windows authentication protocol. Provide a username and password with optional Domain to authenticate. Authentication is encrypted. OAuth 2.0 - stands for Open Authorisation. Please refer to Configure OAuth 2.0 (Email Settings) for more information. |
In Process Auth | A tick box. Whether authorization occurs during the process of communication, or is sent in an initial request. |
User Name | A user name to connect to the remote HTTP service or server. |
Password | A password for the above user. |
Realm (Domain) | The domain that the user belongs to. This can be left blank. |
Buttons
Field Name | Description |
|---|---|
Configure OAuth 2.0 | This button will only be active if OAuth 2.0 is chosen as the Authorization Type. For information regarding this button, please refer to Configure OAuth 2.0 (Email Settings). |
