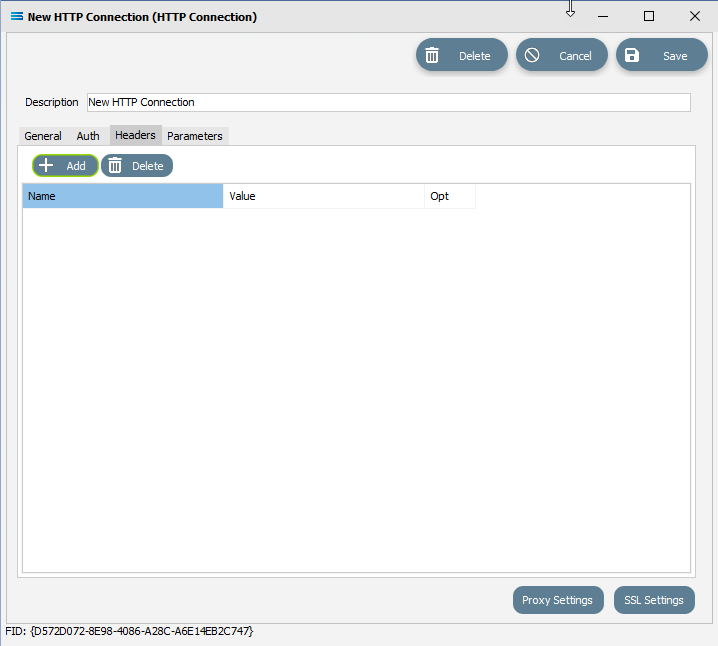

Enter the details for each Header to be included.

You are not able to tab between the columns - you must use the cursor to move across.

Values for any Headers specified here may include tag references, which will be resolved at the time that they are applied.

If the processed value of a Header is empty, and that Header is identified as being optional, then that Header will not be included.

HTTP Connection Headers (and parameters) are applied first, followed by any Headers (or parameters) specified in script on the HTTP object directly.

Scripted header/parameter values therefore override and overwrite any values specified on the HTTP Connection object.


Fields

Field Name

Description

Name

The Header name.

Value

The value/content of the Header.

Opt

Whether the Header is optional. Accepts a Y for yes, or N for no.

Buttons

Field Name

Description

Add

Click to Add a Header.

Delete

Click to Delete a Header.
