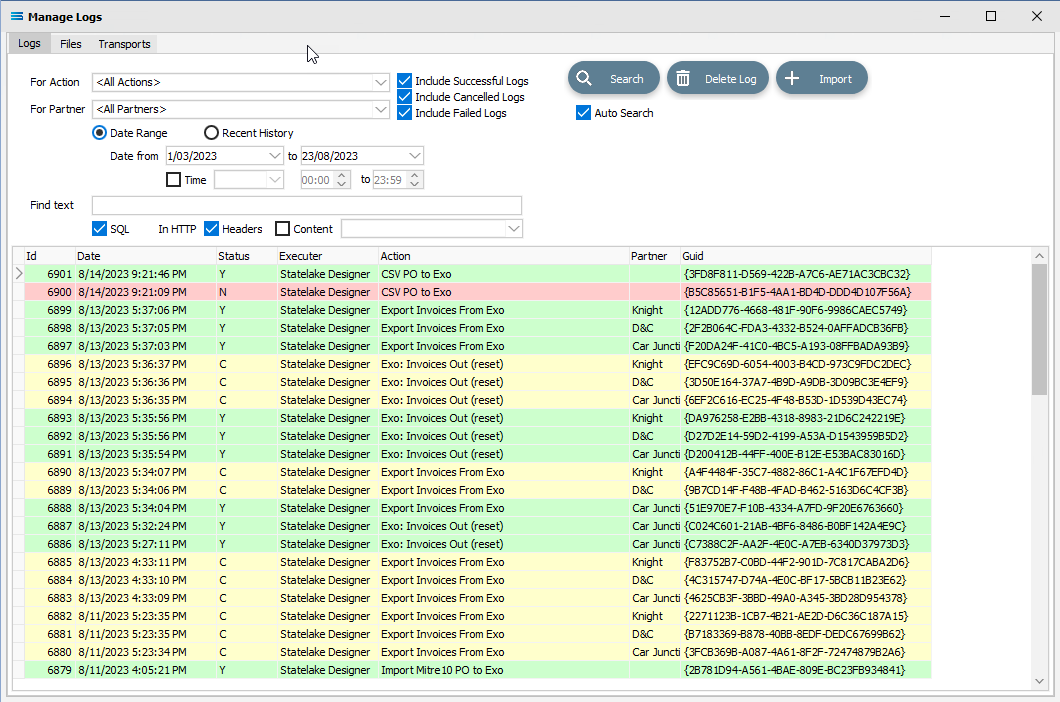

Logs Tab

For Action

Filter the Logs to only the ones created from the execution of this Action. The drop-down arrow will list all Actions in the configuration. The default is <All Actions>.

For Partner

Filter the Logs to only the ones created from the execution of an Action for this Trading Partner. The drop-down arrow will list all Trading Partners in the configuration. The default is <All Partners>.

Date Range

Select this radio button to filter records by a specific date range.

Date from

Only Logs created on or after this date will be displayed.

to

Only Logs created on or before this date will be displayed.

Time

The filter can be further enhanced by specifying a time range. The options are Between or From. The time fields require a from and a to time.

Recent History

Select this radio button to filter records by a specific recent time period.

In the last

This is a two-part field. Specify a number from 0 to 48, and select Minutes or Hours.

Find text

Enter text to be searched for.

SQL Search

Search for the entered text within the SQL statement section of any Log.

Depending on the number of Log entries, using this function can take a very long time.

Use the other criteria to first limit the number of Logs to a smaller subset, then apply this filter.

In HTTP

Search for the entered text within the HTTP section of any Log.

Depending on the number of Log entries, using this function can take a very long time.

Use the other criteria to first limit the number of Logs to a smaller subset, then apply this filter.

Headers

Search for the entered text within the Header section of any Log.

Depending on the number of Log entries, using this function can take a very long time.

Use the other criteria to first limit the number of Logs to a smaller subset, then apply this filter.

Content

There are three (3) options - Requests only, Responses only, and Requests and Responses.

Include Successful Logs

Select to include Logs with a Success or Warning status. These have a GREEN highlight.

Include Cancelled Logs

Select to include Logs with a Cancel status. These have a YELLOW highlight.

Note - by default Cancel status Logs are not saved, you will need to enable these in the Notification tab of the Action configuration.

Include Failed Logs

Select to include Logs with an Error status. These have a PINK highlight.

Auto Search

Select to have the filter settings automatically applied whenever one of the above fields is changed.

Logs List

Double click an entry to open the Log Detail viewer.

Search

Click to apply the current filter settings to the list of Logs.

Delete Log

Click to Delete the selected Logs. You can use the <control> key to select multiple Logs for deletion - each Log record selected in this way will be identified with a . (full stop) and >> (double arrow).

Import

Click to Import a Template file containing a Log. You will be prompted for the location of the Template file. For more information refer to Importing Logs
